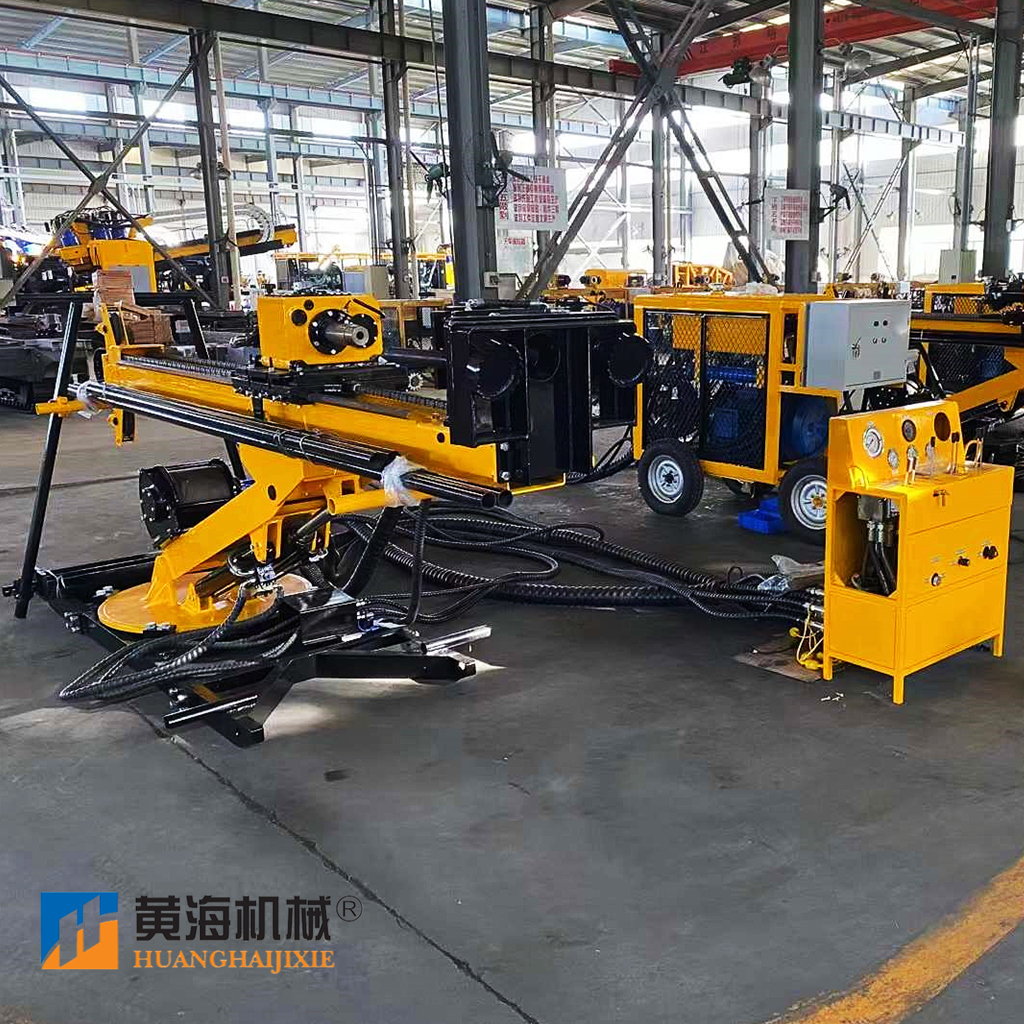

HYKD-3B Full Hydraulic Tunnel Drilling Rig

HYKD-3B Full Hydraulic Tunnel Drilling Rig

HYKD-3B full hydraulic underground top driving drill rig is mainly applied in the fields of coal, geology, metallurgy and engineering.
Product description

HYKD-3B Full Hydraulic Underground Drill Rig

I.  General Introduction HYKD-3B full hydraulic underground top drive drill rig is mainly applied in the fields of coal, geology, metallurgy and engineering. It is used for drilling large dia. gas suction hole in mines, gallery as well as coal mine, water injection hole, and big dia. horizontal hole. It can meet the big dia. roller drilling, hard tungsten-carbide drilling and percussive-rotary drilling.

Ⅱ. Main Features:

1. It is separate in structure, small in size, light in weight, flexible in movement and convenient in operation.

2. The hydraulic pump is driven by explosion-proof electric motor through operating system, then the hydraulic pump enforces hydraulic motor to make drill head rotate, and at the same time, the movement of drill head is realized by oil cylinder & chain double speed mechanism.

3. The sliding and extending & retracting function of the mast makes it convenient for the bottom of mast to touches the ground or platform, thus the drill rig will be more stable.

4. The up and down swing of the swing arm and mast is suitable for multi-angle drilling requirements. 5. The range of spindle rotating speed is wide and the torque is large.

Ⅲ. Main Technical Specifications:

ITEM UNIT PARAMETERS
Drilling Depth (m) BQ 400
NQ 300
HQ 200
Drill Head Rated Rotary Torque Nm 855
Rotary Speed r/min 0~1200
Lifting Force/Feeding Force (Chain) kN 60/30
Rated Power of Electromotor kW 45
Rated Rotary Speed of Electromotor r/min 1480
Drill Head Feeding Stroke mm 1800
System Pressure MPa 25
Single-wire Hoisting Capacity of Wire-line Winch kN 8
Rope Dia. of Wire-line Winch mm 6
Drilling Angle ° 0-180
  Weight Main Machine kg 1450
Power Unit kg 1140
Control Cabinet kg 130
Dimensions Main Machine mm 3456*1290*1620
Power Unit mm 2530*1000*1550
Control Cabinet mm 870*450*1045
